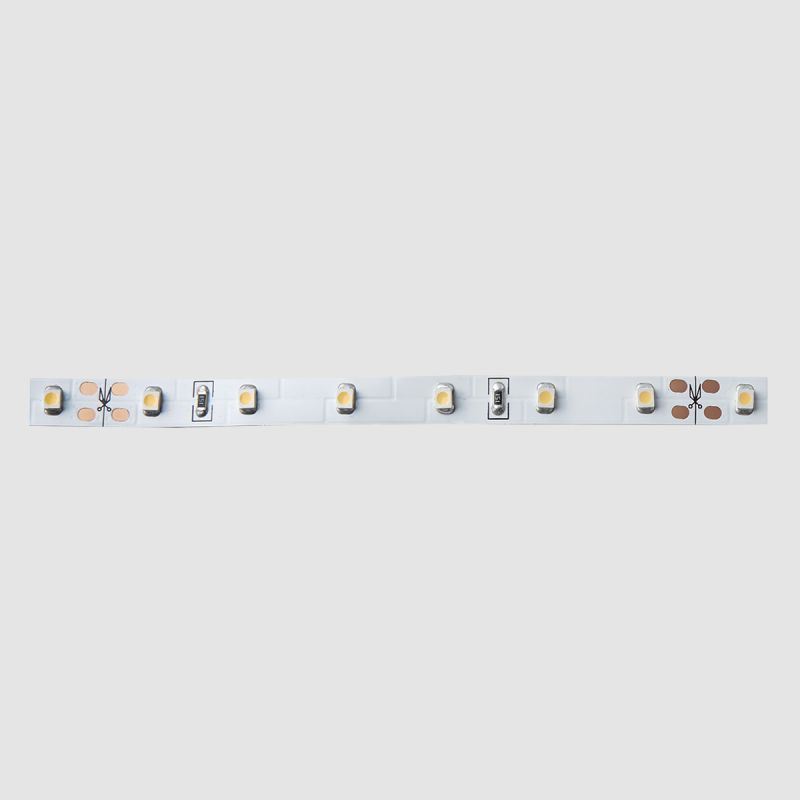

14.4w/m IP20 4000k LED Strip
14.4w/m IP20 4000k LED Strip

14.4w/m IP20 4000k LED Strip

Dimmable
Dimmable
Class 3
Class 3
24V
24V

Key features

Tech spec

Downloads

  • 100mm cut points
  • 24V
  • Supplied with 150mm tails on both ends
product codeLST-14-4
description5m Roll LED Strip, 4000k, IP20 60 LED 14.4W/m
name14.4w/m IP20 4000k LED Strip
item
finishn/a
main materialn/a
overall dimensions5m x 10mm
applicationn/a
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP20
bathroom zonesn/a
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceSMD LED
lumen output (lm)100/W
colour temperature (cct)4000K (Cool White)
cri>80
beam angle °120
efficacy (lm/w)100
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)14.4/m
input power24V
driver included?No
power factorn/a
switchn/a
dimmableYes
dimming methodWhen used with a dimmable driver
class3 (Low Voltage)
cable length (mm)150
additional information
Must be used with an aluminium profile to act as heat sink
Cut distance every 100mm
Power feed-in required every 10m
Supplied with 150mm tails on both ends
Use with LST-CON1, LST-CON2 connectors

Download LDT File

14W per m LED strip

Flexible LED strip lighting is popular amongst architects, lighting designers and home owners alike. 60 LEDs per meter gives a bright high quality light, whilst cut points every 10cm enables intricate linear lighting schemes. Choose from 3000k or 4000k, and IP65 if required or desired. Select your aluminium profile for both the desired lighting effect and the required heat sinking to allow you strip to perform well for years to come. If in doubt how much light you need from your LED strip always choose the higher output. Combine your LED strip with a dimmable driver and compatible dimmer to control the intensity of the light. See our guide to LED strip in Help and Advice for more information. Email info@projectcollection.co.uk for more advice on your LED strip installation.

14w per m LED Strip
