Kobe Large
Kobe Large
Kobe Large
Kobe Large

Kobe Large

Class 2
Class 2
IP54
IP54

Key features

Tech spec

Downloads

  • Corrosion resistant
  • Vandal resistant materials
  • Dark grey PC-ABS with opal polycarb diffuser
  • Wall or ceiling mounted
product codeOD-KOBL

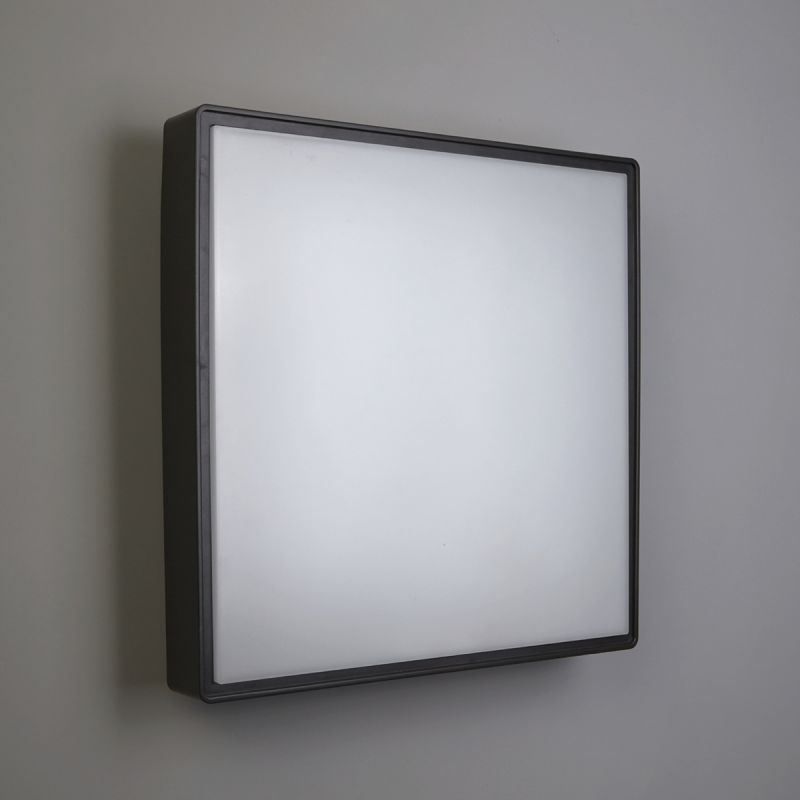

descriptionKobe Large, IP54, 400x400mm, SMD LED 21W, 3000K
nameKobe Large
item
finishDark Grey
main materialPC ABS
overall dimensions400 x 400 x p.95mm
applicationOutdoor Ceiling / Wall
cut outn/a
recess depth mmn/a
fire ratedn/a
ip ratingIP54
bathroom zones2
tilt angle °n/a
adjustablen/a
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceSMD LED
lumen output (lm)1260
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °n/a
efficacy (lm/w)60
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)21
input power220-240V 50/60Hz
driver included?Yes
power factorn/a
switchn/a
dimmableNo
dimming methodn/a
class2 (Double Insulated)
cable length (mm)n/a
additional information
Suitable for use in a coastal environment

Download LDT File

Kobe

Part of our ever popular coastal range, Kobe is constructed from a combination of PC and ABS plastics providing a crisply designed weatherproof lighting solution suitable for coastal locations. Kobe is available in two sizes in a smart dark grey and is suitable for wall and ceiling applications. For a round alternative look at the Kyoto range.

Kobe
