LED Wall Washer
LED Wall Washer
LED Wall Washer
LED Wall Washer
LED Wall Washer

LED Wall Washer

Dimmable
Dimmable
Class 3
Class 3

product variants

Key features

Tech spec

Downloads

  • Dimmable
  • 60° tilt
  • Die cast body with a sand white finish
product codeDL-WASH
descriptionLED Wall Washer 8W 3000k, Sand White
nameLED Wall Washer
item
finishSand White
main materialSteel
overall dimensionsdia.83 x h.78mm
applicationRecessed ceiling
cut out76mm
recess depth mm100
fire ratedNo
ip ratingIP20
bathroom zonesn/a
tilt angle °60
adjustable350degree rotation, 60degree tilt
warranty5 years
avg hours of operation30000
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceCOB LED
lumen output (lm)585
colour temperature (cct)3000K (Warm White)
cri>80
beam angle °36
efficacy (lm/w)73
lamp detailn/a
lamp includedn/a
electrical
maximum wattage (W)8
input power220-240V 50/60Hz
driver included?Yes
power factor0.6
switchn/a
dimmableYes
dimming methodMains
class3 (Low Voltage)
cable length (mm)n/a
additional information

Download LDT File

led wall washer

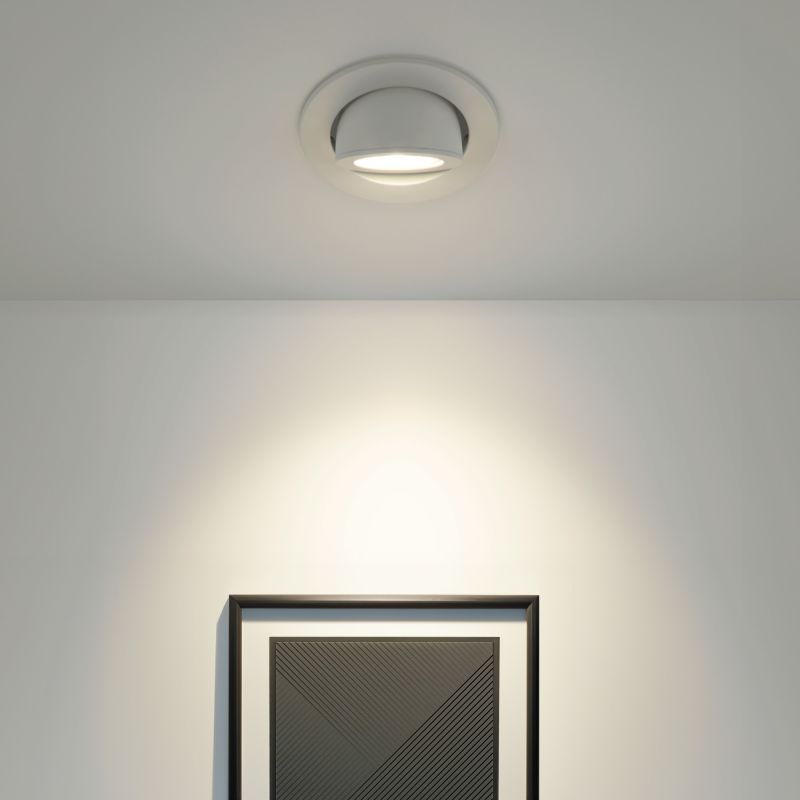

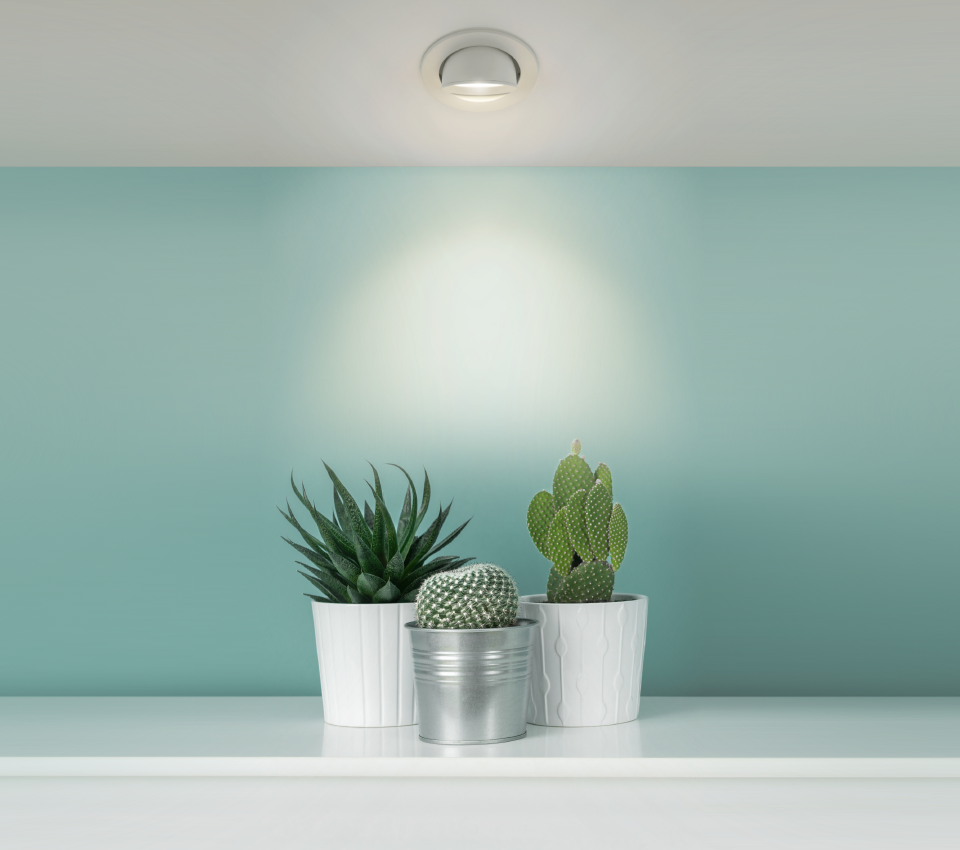

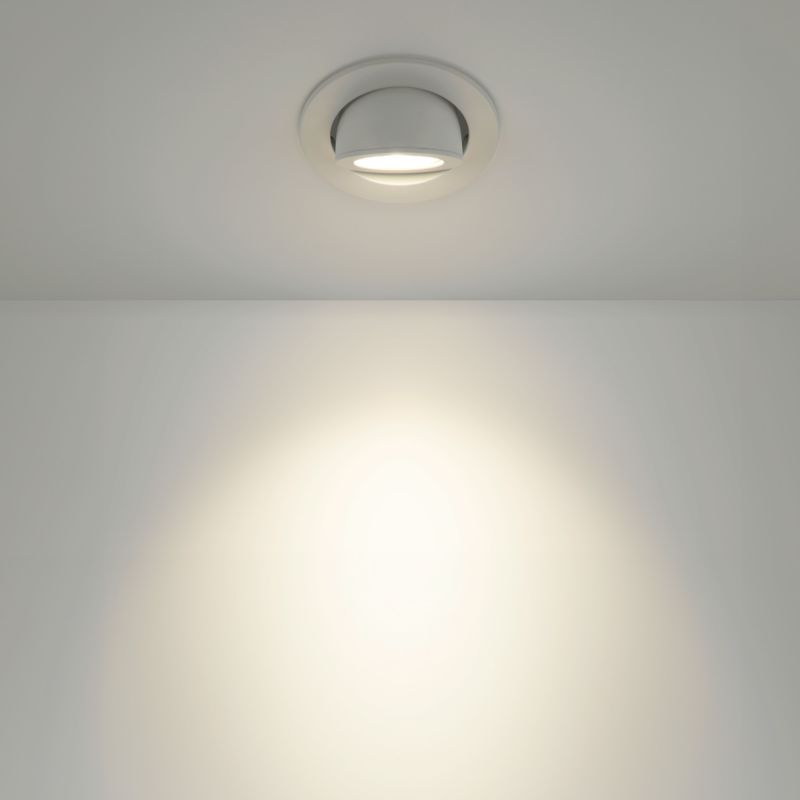

Wall washers are the modern picture light. Unobtrusive, they are recessed into the ceiling and the large angle of tilt allows a wide beam of light to be cast onto the wall. Select the distance the Wall Washer is mounted from the wall to suit the size of the arc of light you desire. Adjust the tilt to position the light at the required height up the wall, and rotate to perfectly spotlight your art or feature. See GU10 Wall Washer for a GU10 solution, or for a trimless look try Rennes Wall Washer or Telegraphe.
