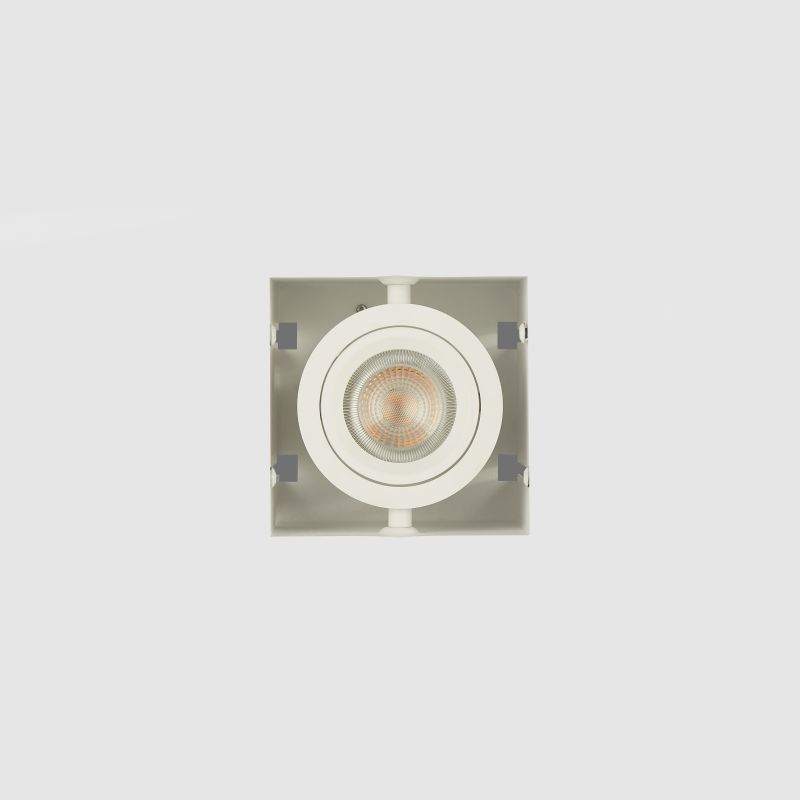

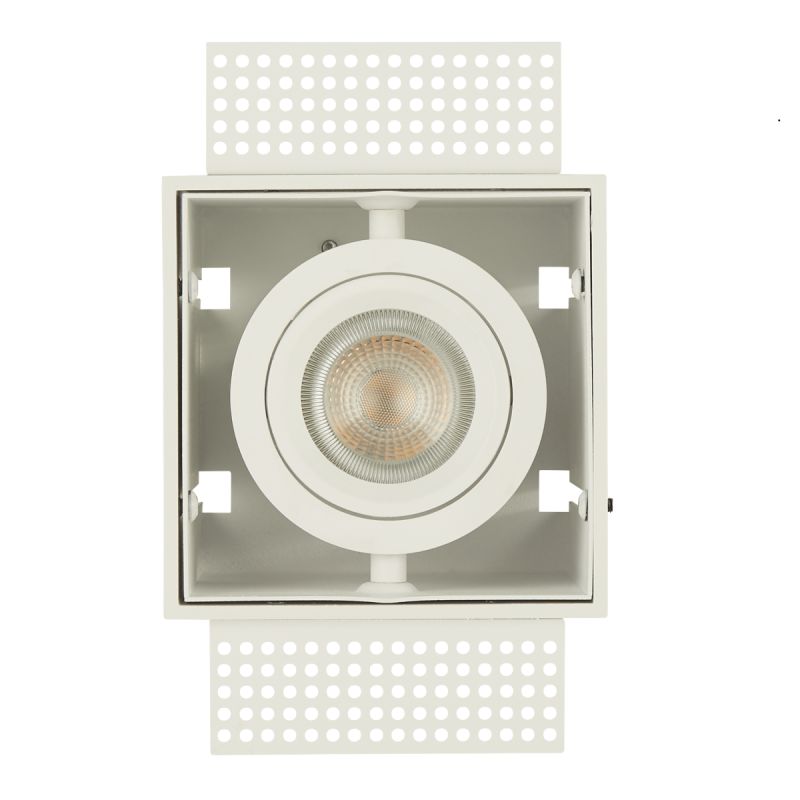

Sablons 1 Square Adjustable Trimless
Sablons 1 Square Adjustable Trimless
Sablons 1 Square Adjustable Trimless
Sablons 1 Square Adjustable Trimless
Sablons 1 Square Adjustable Trimless

Sablons 1 Square Adjustable Trimless

Class 1
Class 1
Dimmable
Dimmable
230 Volts
230 Volts

Key features

Tech spec

Downloads

  • Dimmable
  • Matt white finish
  • Ceilings must be skimmed after fitting the item
product codePL-SAB1-W
descriptionSablons 1 Square Adjustable Trimless, GU10, White
nameSablons 1 Square Adjustable Trimless
item
finishSand White
main materialAluminium
overall dimensionsL.160 x W.100 x H.115mm (plus tabs)
applicationCeiling
cut out102 x 102mm
recess depth mmn/a
fire ratedn/a
ip ratingIP20
bathroom zonesn/a
tilt angle °20
adjustableTilt
warranty5 Years
avg hours of operationn/a
weight rating (kg)n/a
nett weight (kg)n/a
light
light sourceGU10 LED
lumen output (lm)n/a
colour temperature (cct)n/a
crin/a
beam angle °n/a
efficacy (lm/w)n/a
lamp detailn/a
lamp includedNo
electrical
maximum wattage (W)10W max
input power220-240V 50/60Hz
driver included?n/a
power factorn/a
switchn/a
dimmableYes
dimming methodn/a
class1 (Earthed)
cable length (mm)n/a
additional information
Plaster skim after installation

Sablons 1

Add seamless architectural downlighting with Sablons. Single and double GU10 trimless lighting series. Choose white to disappear into your ceiling, or black for crisp architectural contrast. Equally suited to commercial, hospitality and residential applications. Available in single and twin versions, and in black and white.

Sablons 1
